PLC BASED DEMAND CONTROL SYSTEM

SYSTEM OVERVIEW & APPLICATIONS IN INDUSTRIES.

  system designed for controlling The Contract Demand of the Plant.

  PLC based system.

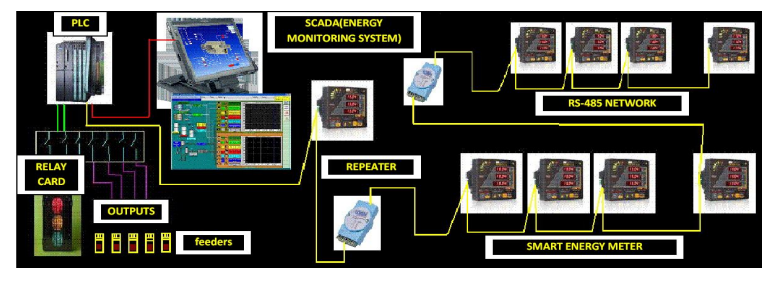

  Smart Energy Meters Installed on MAINS DISTRIBUTION PANEL & Other Distribution panels of the plant are RTC (Real Time Clock )based , which provides accuracy of time cycle synchronization with electricity board

  RTC (Real Time Clock ) of PLC & Smart Meter makes this system Precise to match the Demand Timing of Electricity Board along with Plant’s current Demand by time synchronization of both

  Logic of PLC for controlling can be designed or customize as per client’s request.

  Availability of Indications For Spare Load/Normal Load/and High Load

  Smart Tripping system for the non-critical load to control the Demand.

  Availability of more than 3 tripping.

  Load management system as per Under Voltage/Over Voltage/ Over current for the feeders

  Energy Monitoring System (SCADA) available.

  Basic Parameters available to Monitor on SCADA are : KW,KVA,KVAR,PF,KWH,KVAH,

  Voltages of R/Y/B-Phase, Current of R/Y/B-Phase, HZ, Accumulated Demand, etc.

  Harmonic Analysis Screen on SCADA available for Mains feeder

  Report in Excel sheet Form(Database storage for 1 year of reports is available).

  Historical/Real Time trends Available.

  Alarms Status available.

  Module is customizable in terms of I/O

  Telephonic/Onsite Warranty for one year.
