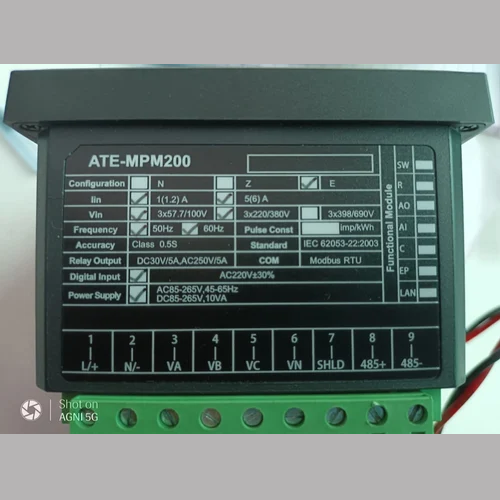

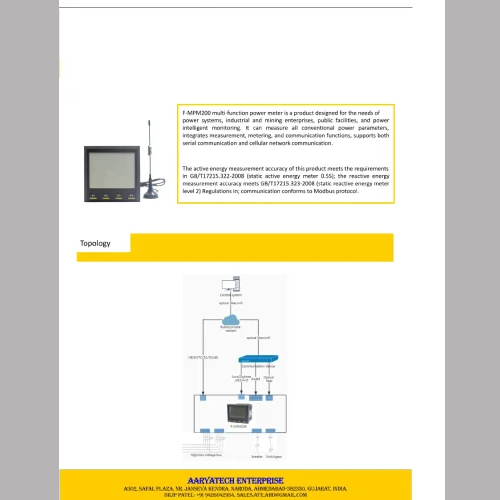

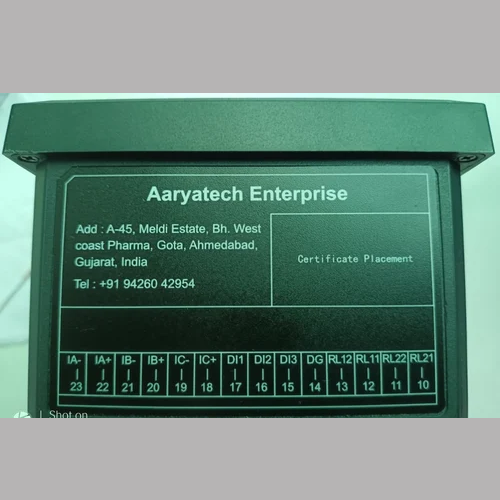

ATE - MPM200 multi-function power meter is a product designed for the needs of power systems, industrial and mining enterprises, public facilities, and power intelligent monitoring. It can measure all conventional power parameters, integrates measurement, metering, and communication functions, supports both serial communication and cellular network communication.The active energy measurement accuracy of this product meets the requirements in GB/T17215.322-2008 (static active energy meter 0.5S); the reactive energy measurement accuracy meets GB/T17215.323-2008 (static reactive energy meter level.

Regulations in ; communication conforms to Modbus protocol.

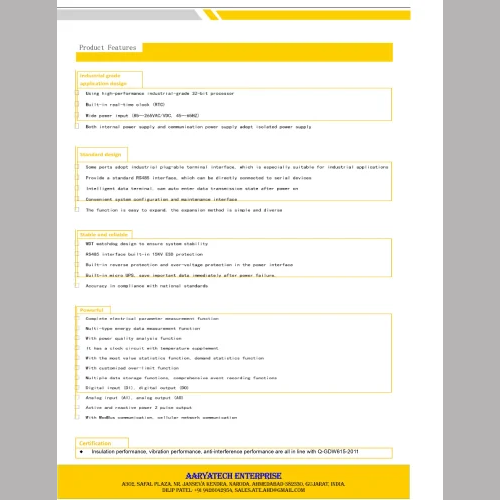

Industrial grade application design : Using high-performance industrial-grade 32-bit processor Built-in real-time clock (RTC) Wide power input (85???265VAC/VDC, 45???65HZ) Both internal power supply and communication power supply adopt isolated power supply.

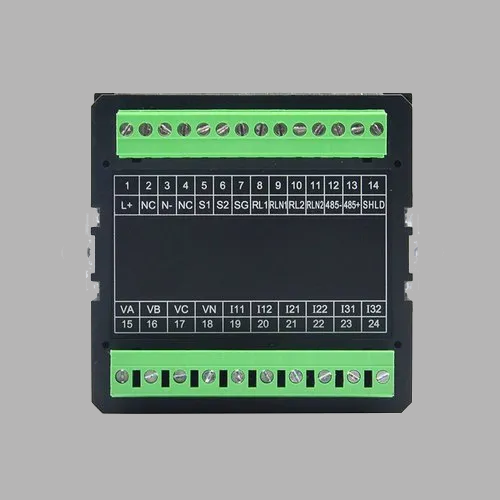

Standard design : Some ports adopt industrial plug-able terminal interface, which is especially suitable for industrial applications Provide a standard RS485 interface, which can be directly connected to serial devices Intelligent data terminal, can auto enter data transmission state after power on Convenient system configuration and maintenance interface The function is easy to expand, the expansion method is simple and diverse.

Powerful : Complete electrical parameter measurement functio Multi-type energy data measurement function With power quality analysis function It has a clock circuit with temperature supplement With the most value statistics function, demand statistics function With customized over-limit function Multiple datastorage functions, comprehensive event recording functions Digital input (DI), digital output (DO) Analog input(AI), analog output (AO) Active and reactive power 2 pulse output With ModBus communication, cellular network communication

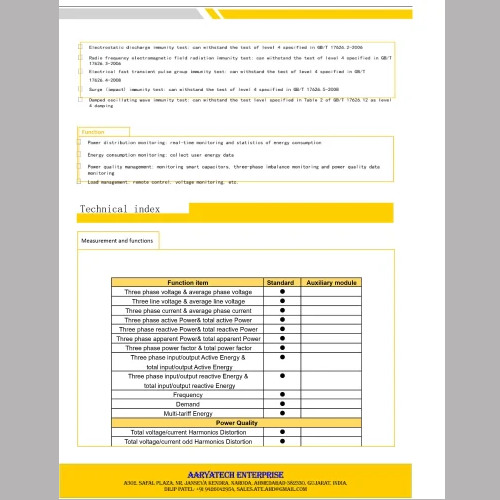

Certification : Insulation performance, vibration performance, anti-interference performance are all in line with Q-GDW615-2011 Electrostatic discharge immunity test: can withstand the test of level 4 specified in GB/T 17626.2-2006 Radio frequency electromagnetic field radiation immunity test: can withstand the test of level 4 specified in GB/T 17626.3-2006 Electrical fast transient pulse group immunity test: can withstand the test of level 4 specified in GB/T 17626.4-2008 Surge (impact) immunity test: can withstand the test of level 4 specified in GB/T 17626.5-2008 Damped oscillating wave immunity test: can withstand the test level specified in Table 2 of GB/T 17626.12 as level 4 damping.

Function : Power distribution monitoring: real-time monitoring and statistics of energy consumption. Energy consumption monitoring: collect user energy data Power quality management: monitoring smart capacitors, three-phase imbalance monitoring and power quality data monitoring Load management: remote control, voltage monitoring, etc.
